PIPE HANDLING TOOLS

Complete range of pipe handling tools includes–Elevators, Elevator/Spider, Rotary Slips, Power Tongs, Manual Tongs, Safety Clamps, etc. suitable to handle various sizes of drill pipes, drill collars, tubings and casings.
Previous
Next

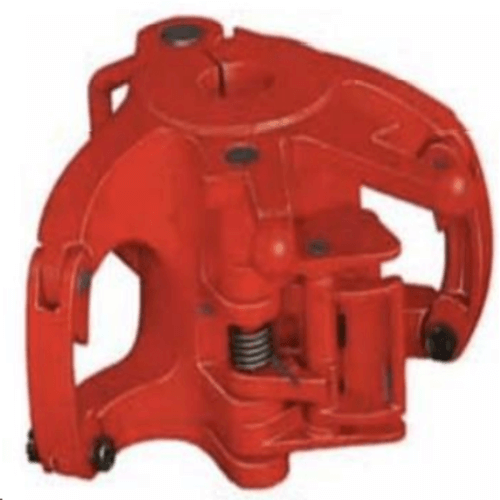

ELEVATORS

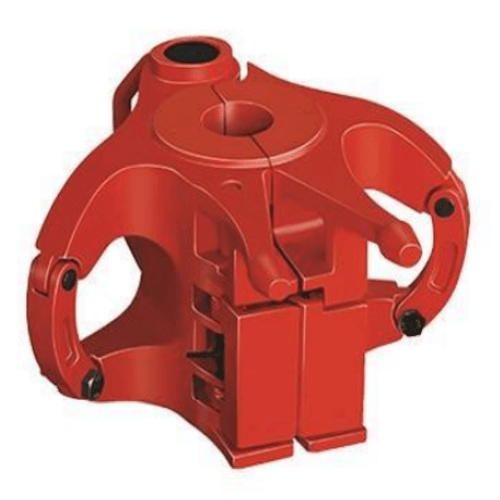

ELEVATORS–Model DDZ Series

  • Model DDZ series elevators are Center Latch Elevators, suitable for handling 18 degree taper shoulder drill pipe and drilling tools.
  • Handling sizes: 2.3/8″ to 6.5/8”
  • Load capacity ranges: 100 ton to 750 ton
  • Designed and manufactured according to API Spec 8C

ELEVATORS – Model DD Series

  • Model DD series elevators are Center Latch Elevators with square shoulder, suitable for handling drill collars, casings and tubings
  • Handling sizes: 2.3/8″ to 5.1/2”
  • Load capacity ranges: 150 ton to 350 ton
  • Designed and manufactured according to API Spec 8C

ELEVATORS – Type TA Series

  • Model TA series center latch elevators with square shoulder are suitable for handling drill collars, casings and tubings
  • Handling sizes:
    • Drill Collars (2.7/8” to 11.1/4”)
    • Tubings (1.05” to 5” NU)
    • Casings (4.1/2” to 10.3/4”)
  • Load capacity ranges: 35 ton to 150 ton
  • Designed and manufactured according to API Spec 8C

ELEVATORS – TYPE SLX SERIES

  • Model SLX series side door elevators with square shoulder are suitable for handling tubing, casings, drill pipes, drill collars
  • Handling sizes: 2.3/8” to 14”
  • Load capacity ranges: 65 ton to 350 ton
  • Designed and manufactured according to API Spec 8C

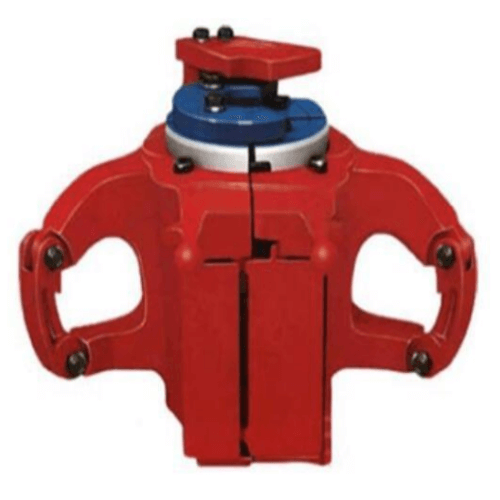

ELEVATORS – Slip Type Y-Series

  • Slip Type Y-series elevators are indispensable tools in handling drill pipes, casings and tubings.
  • Models available HYT, YT, MYT, LYT, HYC, MYC and YC
  • Handling sizes:
    • HYT (2.3/8” to 3.1/2”) – 150 ton
    • YT (1.315” to 3.1/2”) – 75 ton
    • MYT (1.315” to 2.7/8”) – 40 ton
    • LYT (1.05” to 1.1/16”) – 20 ton
    • HYC (3.1/2” to 7.5/8”) – 200 ton
    • MYC (3.1/2” to 7”) – 125 ton
    • YC (3.1/2” to 7”) – 75 ton
  • Load capacity ranges: as per model
  • Designed and manufactured according to API Spec 8C

ELEVATORS – Single Joint Type SJ

  • Type SJ series elevators are mainly used in handling single joint of casing or tubing.
  • Handling sizes:
    • 2.3/8” to 20” – 45 kN
    • 21.1/2” to 36” – 60 kN
  • Load capacity ranges: 45 kN to 60 kN
  • Designed and manufactured according to API Spec 8C

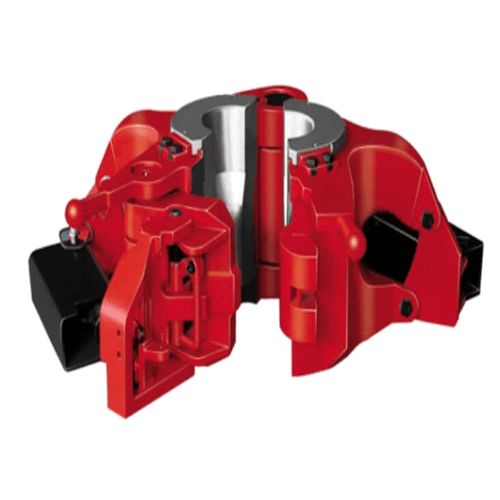

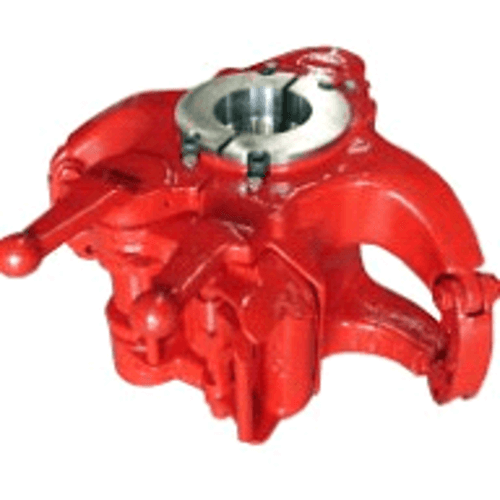

HYDRAULIC ELEVATOR –Type CDZH

  • Hydraulic Elevator, Type CDZH, is a side door elevator with double valve structure. By changing the bushings it can handle drill pipes, drill collars, casings and tubings.
  • It can incorporate remote controlling for safer operation
  • Handling sizes:
    • Drill Pipes (3.1/2” to 6.5/8”)
    • Drill Collars (4.3/4” to 9.3/4”)
    • Tubings (2.3/8” to 4.1/2”)
    • Casings (4.1/2” to 9.5/8”)
  • Load capacity ranges: upto 500 ton
  • Designed and manufactured according to API Spec 8C

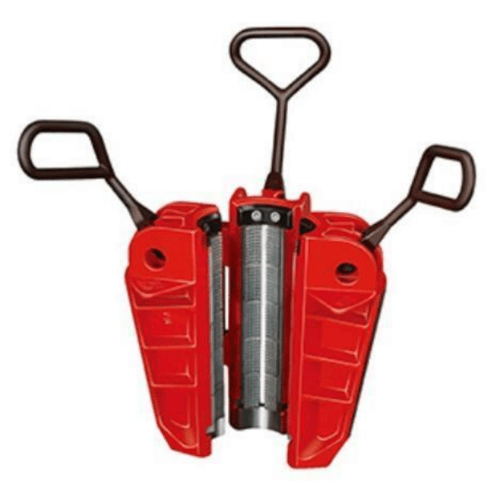

ROTARY SLIPS

DRILL PIPE SLIPS –Type SD

  • Drill Pipe Slips, Type-SD can handle drill pipes from 2.3/8” to 7”.
  • They are classified as type Short (SDS), Medium (SDML) and Large (SDXL) according to the gripping length.
  • SDS slips are designed for shallow hole drilling. Pipe size range: 2.3/8” to 5”
  • SDML slips are perfect choice for medium depth drilling. Pipe size range: 2.3/8” to 5.1/2”
  • SDXL slips are for deep drilling. Pipe size range: 3.1/2” to 7”
  • Designed and manufactured according to API Spec 7K

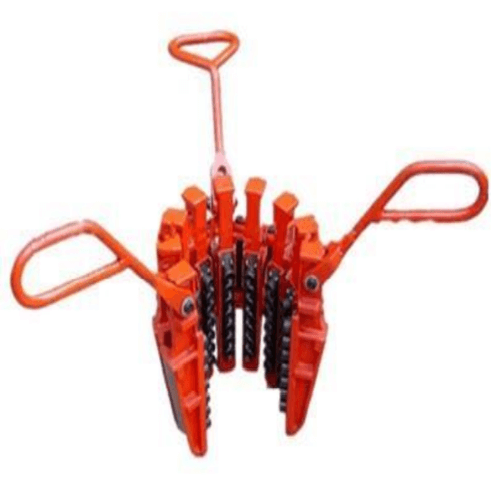

DRILL COLLARS SLIPS –Type DCS

  • Drill Collar Slips, Type-DCS can handle drill collars from 3” to 14”.
  • The handling sizes can be adjusted by changing the quantity of inserts or slip body.
  • They are classified as three types – DCS-S, DCS-R and DCS-L.
  • DCS-S slips are designed pipe size range: 3” to 4.7/8”
  • DCS-R slips are designed pipe size range: 4.1/2” to 7”
  • DCS-L slips are designed pipe size range: 6.3/4” to 14”
  • Designed and manufactured according to API Spec 7K

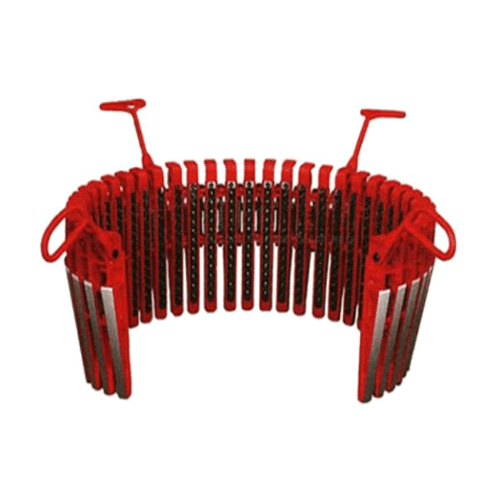

CASING SLIPS –Type CMS

  • Casing Slips, Type-CMS can handle accommodate casings from 4.1/2” to 30”.
  • The handling sizes can be adjusted by changing the quantity of segments.
  • Designed and manufactured according to API Spec 7K

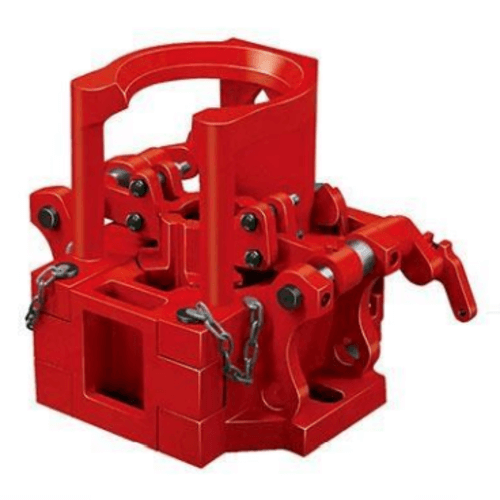

ELEVATOR/SPIDER

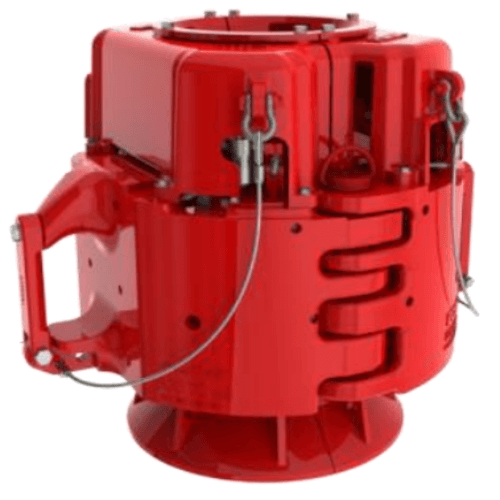

SLIP TYPE ELEVATOR/SPIDER

  • Slip Type Elevator/Spider are mechanized tools with air operating, which are easy to operate and reliable.
  • They can handle casings upto 24”.
  • Models include SE150, SE350, SE500, SE750.
  • Load capacity ranges: 150 ton, 350 ton, 500 ton and 750 ton.
  • Designed and manufactured according to API Spec 7K

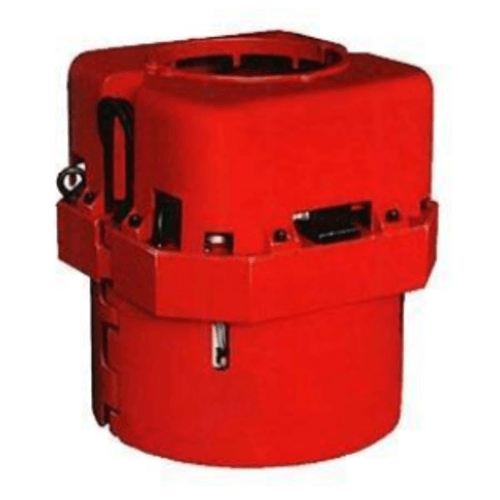

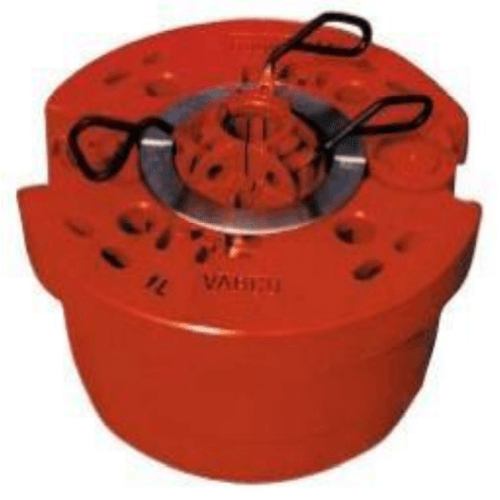

PNEUMATIC SPIDERS

PNEUMATIC SPIDERS – Type C, CHD,HD, E, F

  • Pneumatic Spiders are utilized to grip drill pipes, tubings and casings.
  • Models include C, CHD, HD, E, F
  • Handling sizes:
    • Model-C : 1.315” to 5.1/2” – 80 tons
    • Model-CHD : 1.315” to 5.1/2” – 125 tons
    • Model-E : 2.3/8” to 7.5/8” – 175 tons
    • Model-F : 2.3/8” to 8.5/8” – 200 tons
  • Designed and manufactured according to API Spec 7K

PNEUMATIC SLIPS

PNEUMATIC SLIPS – WQ/PS Series

  • PS series Pneumatic Slips are suitable for all kinds of rotary tables for handling drill pipes and casings.
  • They are mechanized operating with strong hoisting force and large working area. They are easy to operate and dependable enough.
  • Models include PS175, PS205, PS275, PS375, PS16, etc.
  • Designed and manufactured according to API Spec 7K

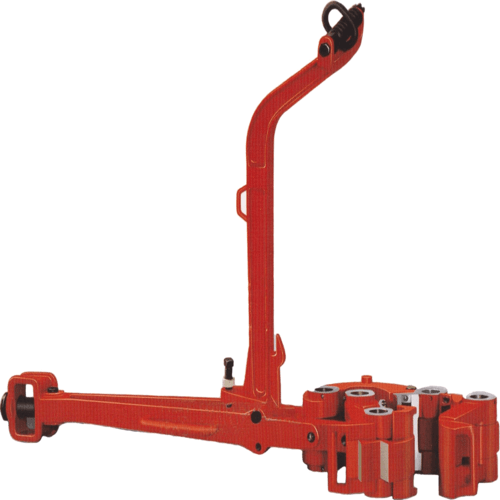

MANUAL TONGS

MANUAL TONG

  • Manual Tong is an essential tool in the oil drilling operation to make-up or break-out pipes.
  • The handling sizes of the manual tong can be adjusted by changing latch lug jaws and latch steps.
  • Models include Type-B, Type-SB, Type-DB, Type-SDD, Type-LF, Type-C, Type-WWC, Type-WWB, Type-AAX, Extended Casing Tong
  • Designed and manufactured according to API Spec 7K
Model SIZE RANGE TORQUE KN.m
SB 3.1/2” to 13.3/8” 40 / 55 / 75 KN.m
DB 3.1/2” to 17” 55 / 90 KN.m
SDD 4” to 17” 80 / 100 / 135 KN.m
LF 2.3/8” to 7” 22 KN.m
C 2.3/8” to 10.3/4” 48 KN.m
WWC 2.3/8” to 10.3/4” 14 / 20 / 27 KN.m
WWB 2.3/8” to 10.3/4” 35 / 48 KN.m
AAX 2.7/8” to 13.3/8” 40 / 75 KN.m
Extended casing tong 13.3/8” to 36” 35 / 55 KN.m

SAFETY CLAMPS

SAFETY CLAMPS – Type MP

  • Safety Clamps Type MP are necessary tools for handling drill collars, flush drill pipes and small shoulder pipes.
  • Different sizes of pipes can be accommodated by changing the number of chain links.
  • Models include MP-S, MP-R, MP-M, MP-L and MP-XL.
  • Handling sizes : 2.7/8” to 30.1/2”
  • Designed and manufactured according to API Spec 7K

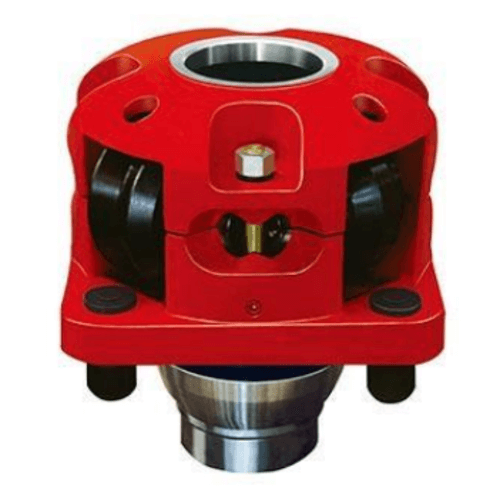

ROLLER KELLY BUSHING

ROLLER KELLY BUSHING

  • Roller Kelly Bushings are mainly classified into two types based on different ways of drive–square drive and pin drive.
  • Also they can be classified into three types based on different styles – heavy, medium and light duty.
  • They are used for 17.1/2” to 49.1/2” rotary tables.
  • Models include
    • HDS : heavy duty, square drive
    • 27-HDP : heavy duty, pin drive
    • 20-HDP : heavy duty, pin drive
    • RTM4 : medium duty, square drive
    • RTS4 : light duty, square drive
  • Designed and manufactured according to API Spec 7K

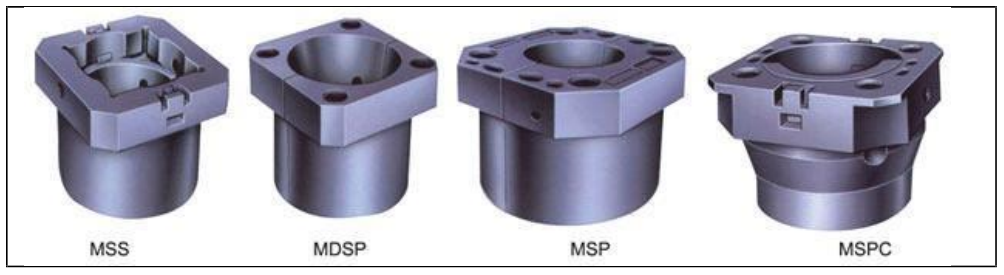

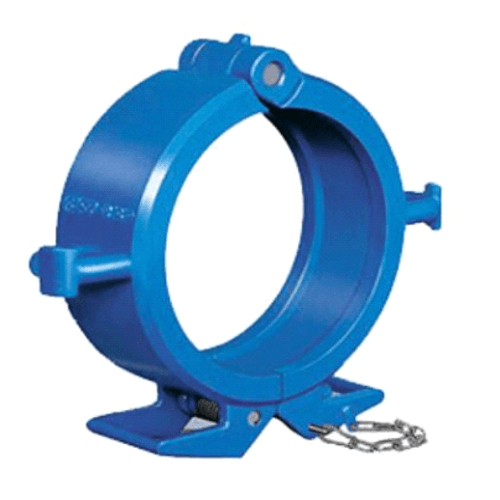

MASTER BUSHINGS AND INSERT BOWL

MASTER BUSHING AND INSERT BOWLS

  • Master Bushings and insert bowls sizing from 17.1/2” to 49.1/2”.
  • Master Bushings are of two types – pin drive and square drive.
  • Models include
    • MSS : for rotary 17.1/2” to 27.1/2”
    • MSPC : for rotary 20.1/2” to 27.1/2”
    • MDSP : for rotary 17.1/2” to 20.1/2”
    • MSP : for rotary 27.1/2”
    • MPCH : for rotary 37.1/2”, 49.1/2”
  • Designed and manufactured according to API Spec 7K

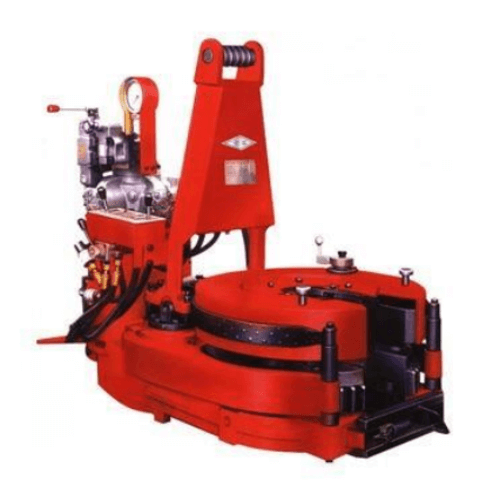

POWER TONGS

DRILL PIPE POWER TONG

  • ZQ Series Drill Pipe Power Tongs are widely used in the oil drilling operation to make-up or break-out pipes.
  • These are hydraulic powered.
  • The power tong features high efficiency, safe and reliable operating performance.
  • The tong head is designed as open type and equipped with advanced swing type double jaw assembly to secure reliable clamping.
  • The drill pipe tong models marked with ‘II’ means the power tong is supplied with DS suspension device.
  • Designed and manufactured according to API Spec 7K

Base Specification

Model ZQ203-125 ZQ203-100 II ZQ162-50 II ZQ127-25
Applicable Range 3.1/2” to 8” 3.1/2” to 8” 2.3/8” to 5” 2.3/8” to 3.1/2”
Max. Torque 125 KN.m 100 KN.m 50 KN.m 25 KN.m
Speed 2.7 to 40 rpm 2.7 to 40 rpm 4.1 to 60 rpm 10 to 63 rpm

CASING POWER TONG

  • TQ-series casing tongs are widely used for making-up or breaking-out casings. These are hydraulic powered.
  • The casing power tong features high efficiency, safe, reliable operating performance and can ensure quality connections.
  • The tong head is designed as open type and equipped with two jaws which can ensure reliable gripping.
  • Designed and manufactured according to API Spec 7K

Base Specification

Model TQ508-70Y TQ356-55Y TQ340-35Y TQ178-16Y
Applicable Range 9.5/8"to 20" 4.1/2” to 14” 4.1/2” to 13.3/8” 4” to 7”
Max. Torque 70 KN.m 55 KN.m 35 KN.m 16 KN.m
Speed 4 to 43.6 rpm 4.8 to 61 rpm 8 to 90 rpm 9 to 79 rpm

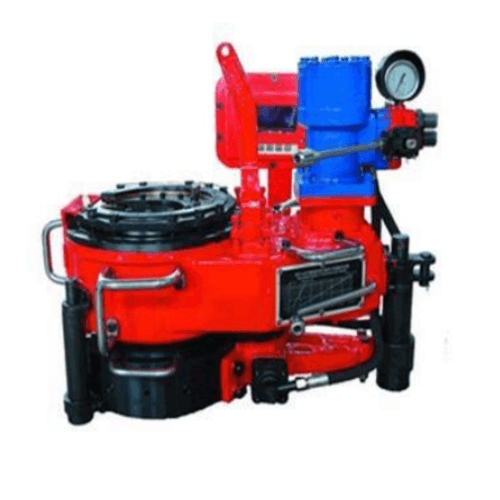

TUBING POWER TONG

  • XQ Series Power Tongs are widely used in the oil drilling operation to make-up or break-out of tubing strings.
  • These are hydraulic powered.
  • The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong.
  • The tong with extra long rod is available for backup tong to grip tubing body.
  • The power tong also can be equipped with automatic torque control system.

Base Specification

Model XQ140-12Y XQ114-6YB XQ89/3Y3YC
Applicable Range (main tong) 2.3/8” to 5.1/2” 2.3/8” to 4.1/2” 2.3/8” to 3.1/2”
Applicable Range (backup tong) 2.7/8” to 6.1/8” 2.7/8” to 5.1/8” 2.7/8” to 4.1/8”
Max. Torque 12 KN.m 6 KN.m 3.3 KN.m
Speed 14 to 72 rpm 20 to 85 rpm 30 to 90 rpm
